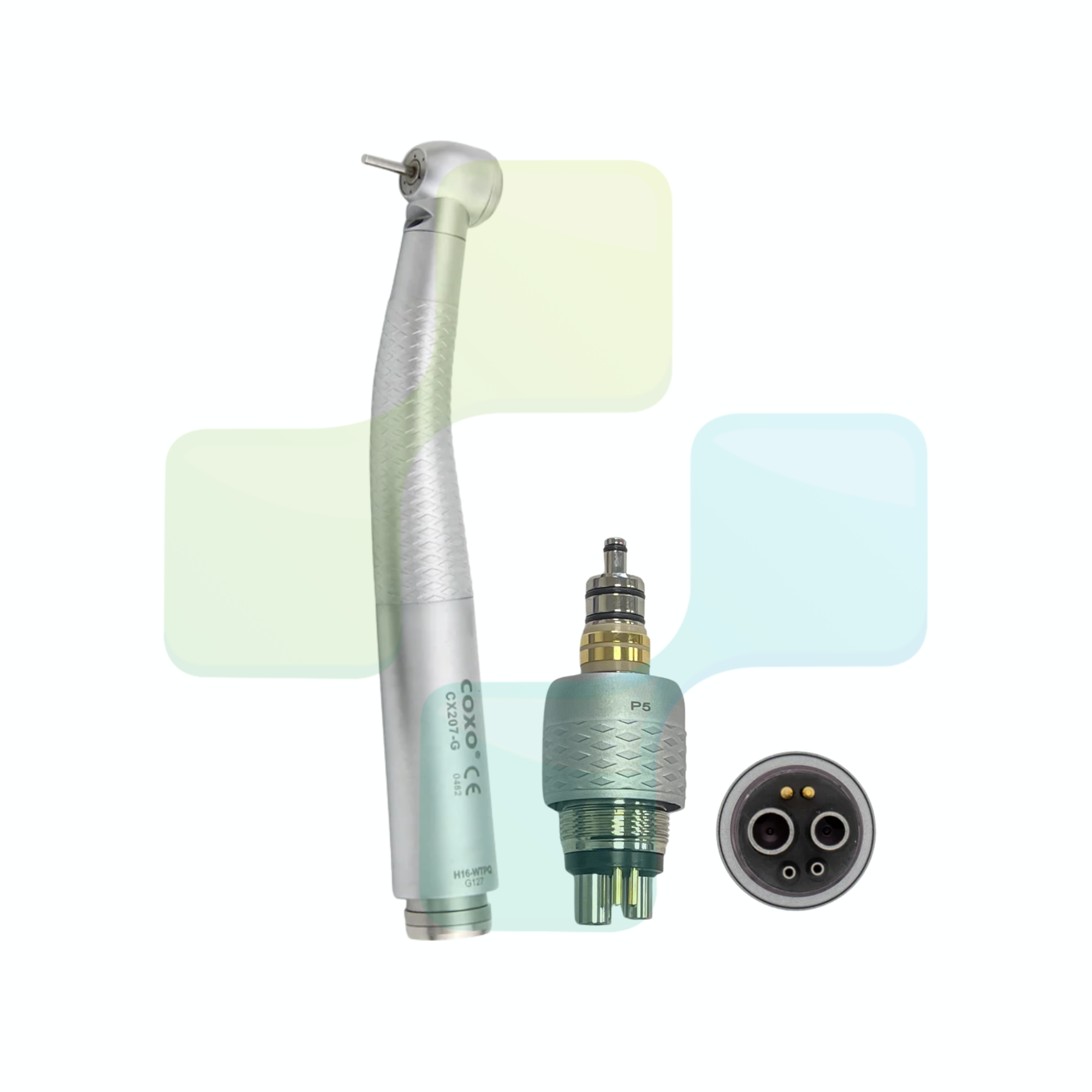

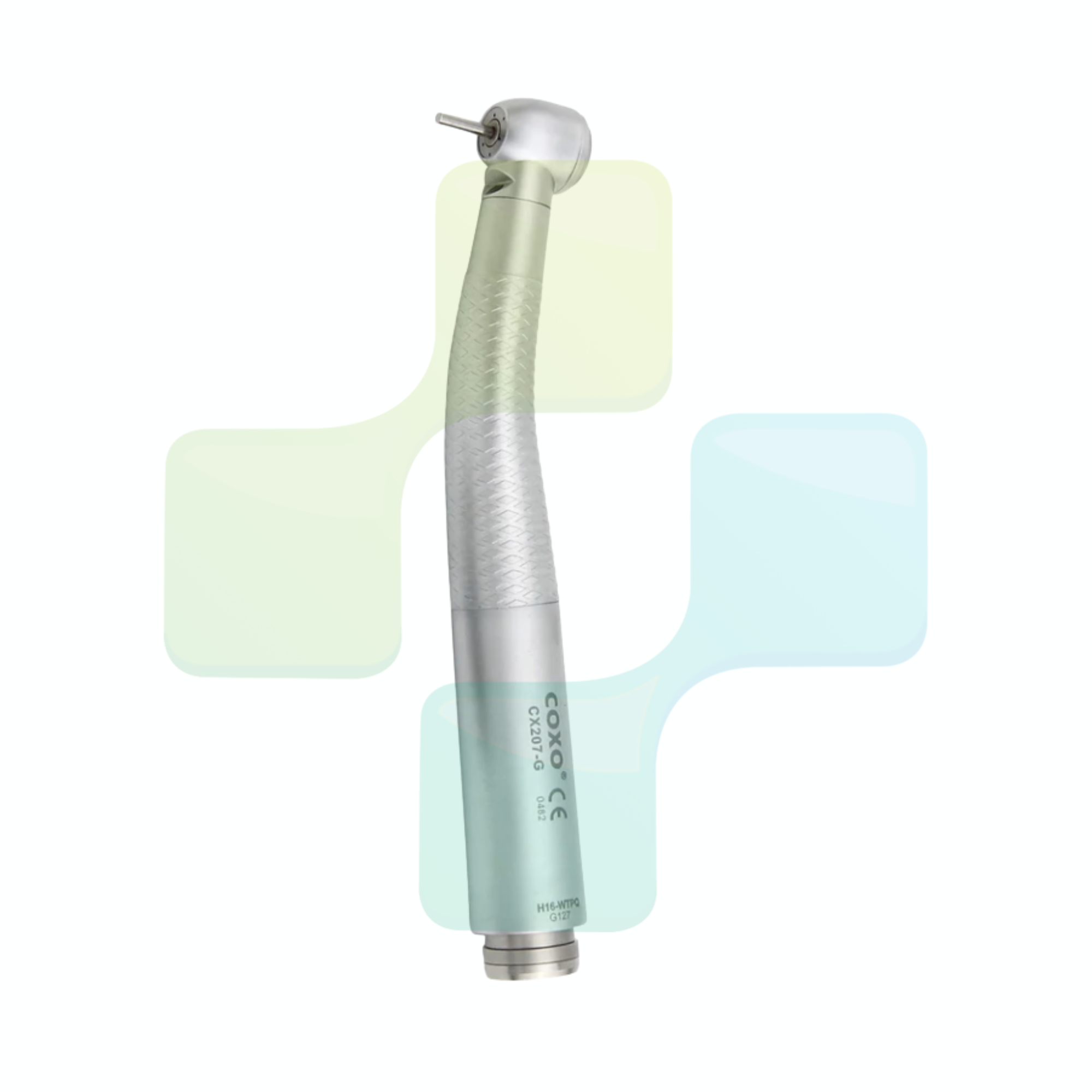

Coxo CX207-G HIW Torque LED W&H Type Handpiece

A 6 hole Midwest torque head high speed fibre optic handpiece featuring long life, low noise and stable bearings. The cartridge has been tested for dynamic balance as noise level of a handpiece is a primary complaint of users. It is believed that an imbalance of rotating elements is a source of excess vibration and noise.

Technical:

• 3 way air
• 3 way water
• Push button Chuck
• ≤ 70DB
• 2.8 Bar Operating Pressure
• ≤ 300,000 RPM rotation speed
• 1W bulb
• 2.8-3.0v
• 160mA

Kavo, NSK and Sirona type versions also available.

W&H® is a registered trademark of W&H Dentalwerk. Dental Edge UK has no affiliation with W&H® and W&H® has not authorised Dental Edge UK parts to be used on or in connection with W&H® products.

Input:

working voltage >3.0v ±2%

If you are switching from a halogen bulb to a LED, then you may need your engineer to check to operating voltage is >3.0v anything over this may result in the LED bulb flickering, this would indicate the the voltage is to high and will continue to flicker until it has been adjusted to the correct working voltage.
