DEXIS OP 3D CBCT LX
Please contact us directly to receive a customised quote based on your specific needs. Finance available.
The next generation of DEXIS cone beam technology
Grow your diagnostic capabilities with 3D imaging
Built on OP 3D technology, this multimodality imaging platform expands your 3D diagnostic capabilities with a wide range of clinical applications that support your evolving practice and enhance diagnostic confidence.
OP 3D LX Highlights
Built to increase practice efficiency
The 2D and 3D imaging options built into the ORTHOPANTOMOGRAPH™ OP 3D™ LX unit cover a full spectrum of dental extraoral needs, from endodontics to complex surgical cases. This next generation system offers flexible field of view (FOV) options ranging from 5 (H) x 5 (D) cm up to 15 (H) x 20 (D) cm – which is the largest view option available on a DEXIS OP 3D platform to date. With shorter scan times, the OP 3D LX captures the maxillofacial complex and large diagnostic areas in one non-stitched scan for fast workflows.

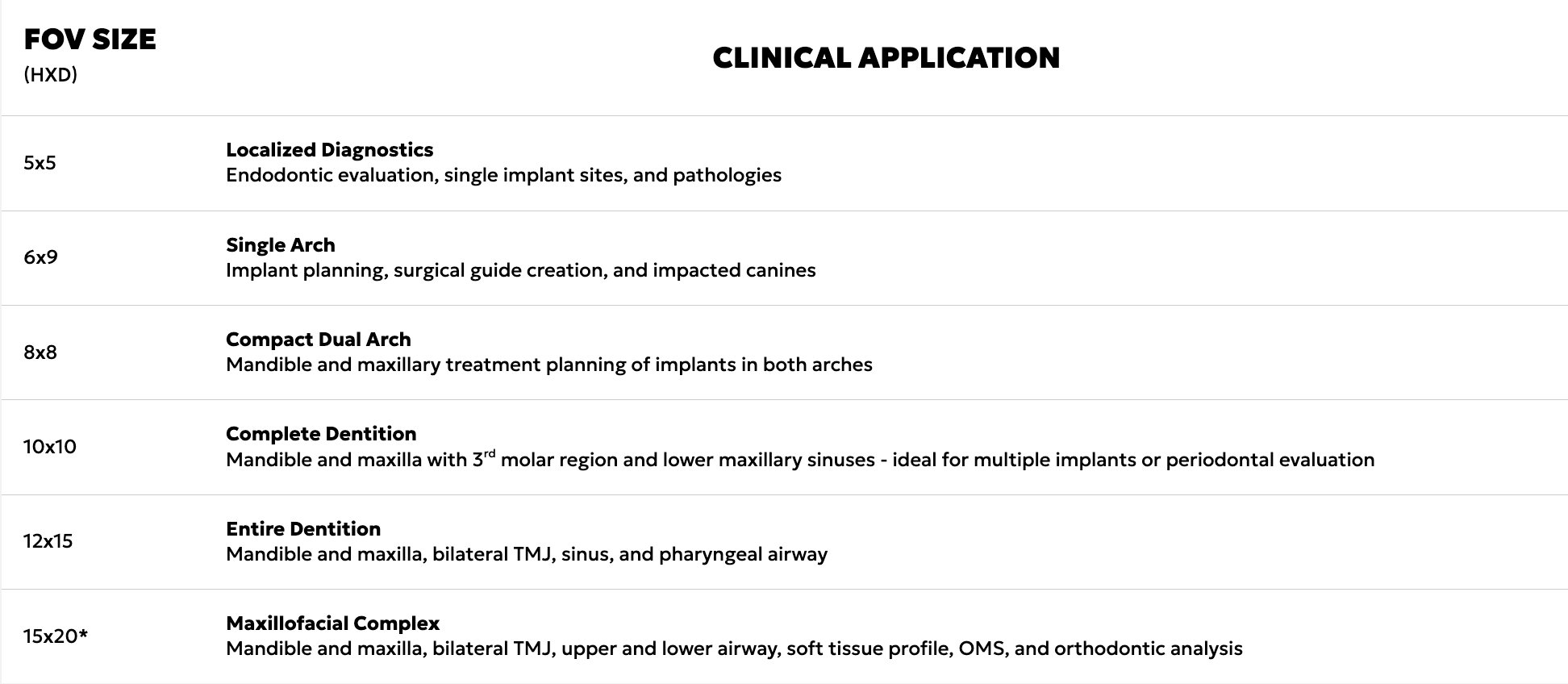

Explore the expanded view options
CBCT Operating Space Requirements for the DEXIS OP 3D LX
Intuitive, interactive and smart features
User interface

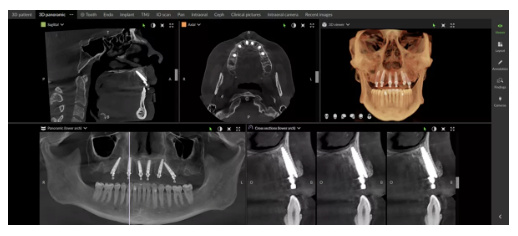

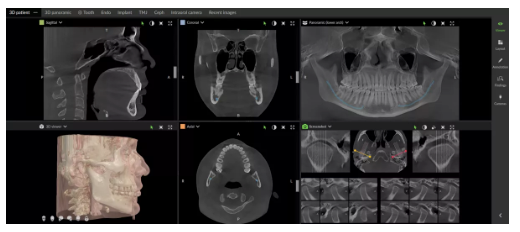

OP 3D LX offers an intuitive user interface that enables you to easily position the patient, visually choose the areas of interest with your 3D, panoramic or cephalometric settings and preview the X-ray image shortly after exposure without opening any image viewing software.
Intuitive accuracy

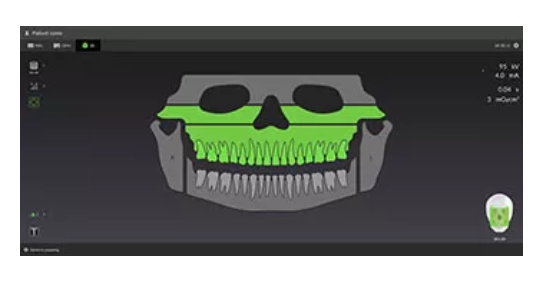

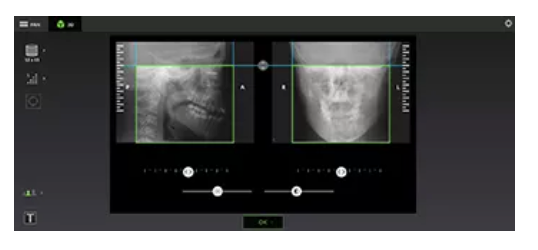

The intuitive user interface in the OP 3D LX system makes it easy to select your field of view and allows for accurate anatomy visualisation, vertical adjustments, and bi-directional scout modifications to capture only structures of interest.

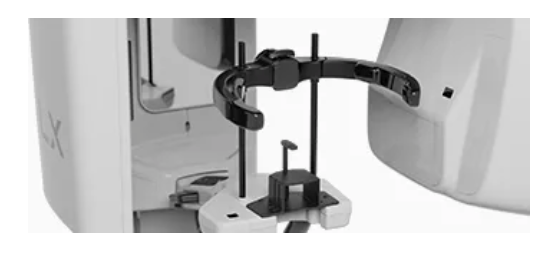

Re-engineered head support
The new head support design provides options to scan the patient without interfering with the patient’s soft tissue profile optimised for orthodontic and surgical applications.
Stitch-free scans
You can accurately diagnose, plan, and treat your patients with confidence using single pass capture with no stitching on every scan size.
Enhanced visibility
Enjoy the next generation of automated ICE* (Implant Contrast Enhancer) and MAR (Metal Artifact Reduction) to provide greater visibility of internal metal structures of existing implants, while minimising the impact of metal and restorations.

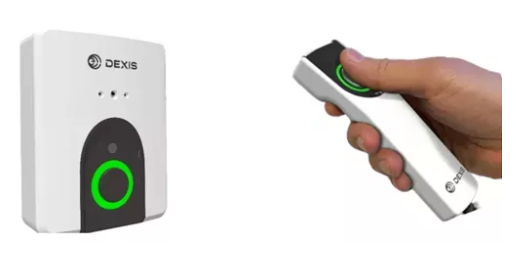

Exposure Switch
The new exposure switch comes with an improved, ergonomic design and a light indicator that shows the device status (ready or exposing) making it more user-friendly and efficient. Discover the power of personalization with the ability to adjust sounds for both the device and remote control.
Configuration
3D
- 4 resolutions for 3D (Low Dose Technology™ (LDT), Standard, High, Endo) combined with Metal Artifact Reduction (MAR) technology
- 4 predefined volumes: 5x5, 6x9, 9x11 and (optional) 9x14 cm - thanks to SMARTVIEW™ 2.0 the volumes are freely positionable and height adjustable in 5 mm steps between 5 and 9 cm before the exposure, leading up to 36 possible FOV sizes in total.
Panoramic
- Fast Scan - 2D panoramic imaging in just 9 seconds
- ORTHOfocus™ feature for providing the optimum panoramic image layer automatically
- Panoramic programs for covering the daily needs of a busy practice
Cephalometric
- Innovative and patented ORTHOceph™ Plus design with fast cephalometric imaging scan times and adjustable field sizes for perfect image quality with minimal dose
Four predefined 3D volume diameters plus the possibility to customise the volume size
The four predefined FOVs of the DEXIS OP 3D are based on true clinical needs and adjustable in height. FOV 5x5 with its endo resolution is optimised for single-tooth and localised diagnostics. FOV 6x9 offers the capability of scanning either the lower or upper jaw, whereas FOV 9x11 combines both. With the largest FOV 9x14, TMJs can be conducted.
Metal Artifact Reduction (MAR): To provide optimum image quality, the Metal Artifact Reduction (MAR) is activated with all FOV sizes and resolutions of the DEXIS OP 3D. MAR is optimized to assist in all cases ranging from endodontics and implants planning to maxillofacial imaging.
DEXIS CBCT:
Long-term Reliability
Backed by a 10-Year Warranty
Investing in a CBCT device is a significant decision for any dental practice, as these advanced imaging systems are crucial for accurate diagnostics and treatment planning. At DEXIS, we understand the importance of this investment and provide a 5-year factory warranty as standard to ensure a solid foundation of security. However, we also offer an additional 5 years of coverage1, extending our comprehensive warranty up to 10 years.
A DEXIS extended warranty is valid for all ORTHOPANTOMOGRAPH™ OP 3D™ LX and ORTHOPANTOMOGRAPH™ OP 3D™ EXmodels and includes all spare parts. However, you can choose to include an extra 5 years of warranty for only the sensor and tubehead. You also have the option for extending the warranty after the CBCT unit installed, and the standard 5-year warranty is already in use.
Downloads:
User Manual (PDF)
