Dexis OP 3D CBCT EX
Please contact us directly to receive a customised quote based on your specific needs. Finance available.
Expand your treatment offering with the OP 3D EX
Grow your diagnostic capabilities with 3D imaging
Built on the OP 3D family technology, the ORTHOPANTOMOGRAPH™ OP 3D™ EX is a complete x-ray platform designed for general practitioners looking to expand their practice with 3D imaging.
The OP 3D EX makes it easy to capture high-quality images with fast scan times while providing user-friendly features throughout the entire dental imaging workflow. Analyze clear, accurate 3D scans and diagnose with confidence thanks to the flexible field of view sizes and advanced filters, both in the device as well as within DTX Studio™ Clinic.
Examples of some filters include Metal Artifact Reduction (MAR) and Implant Contrast Enhancement (ICE), and Edge-Preserving Noise Reduction (EPNR).
DTX Studio™ suite connects the devices and technologies in your dental practice or lab – in one single platform.
OP 3D EX Highlights
Chairside-designed surgical templates in less than 3 minutes*

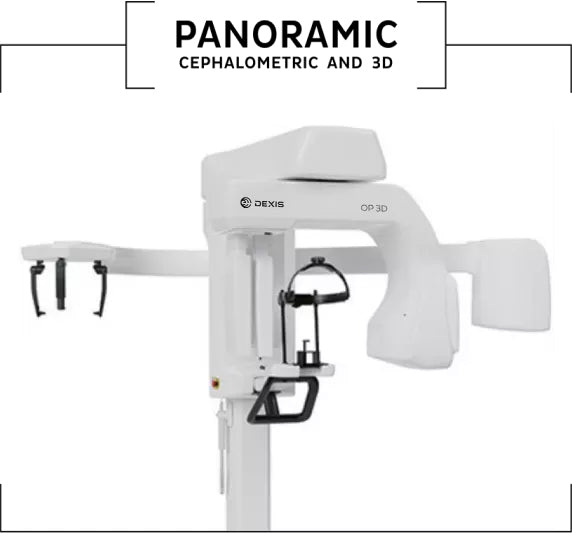

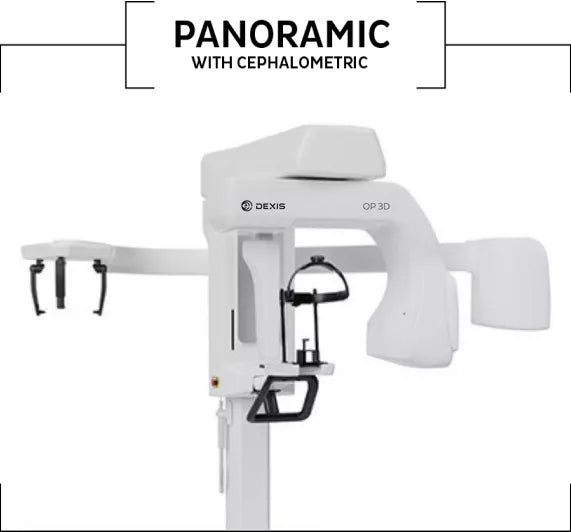

The OP 3D EX is completely upgradable to the cephalometric imaging.
Improved ergonomic design, user friendly and efficient.

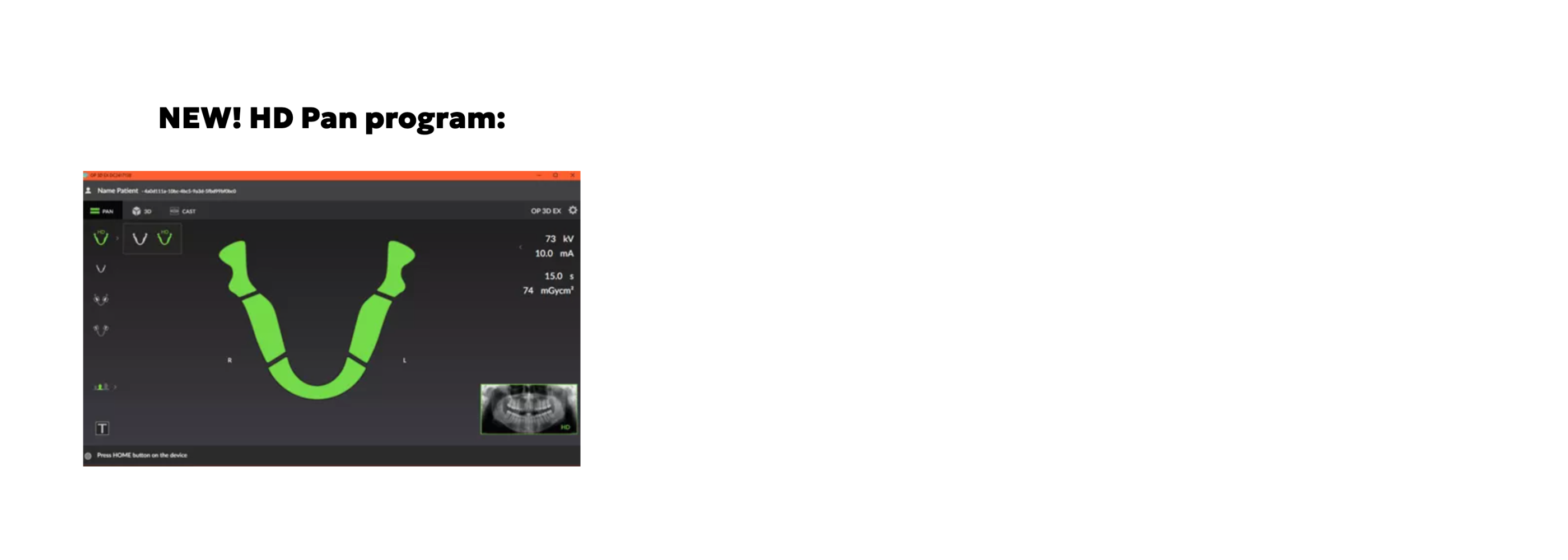

Experience the new HD mode for the standard (adult) program.
Capture fast, accurate images in 4 easy steps
1. Secure patient positioning and stabilization
A newly designed head support helps you quickly find the ideal patient position and helps your patient remain still during exposure
2. User-friendly interface
Visually choose your area of interest from a user-friendly, straightforward interface.
3. Accurate image capture
Use the optional scout to preview and modify the area of interest without having to reposition the patient or even open the viewing software.
4. Fast scan times
The OP 3D EX has, on average, 30% faster overall scan times and 50% faster low dose scan times.*
*Compared to OP 3D. Data on file.
Configuration
3D
- 4 resolutions for 3D (Low Dose Technology™ (LDT), Standard, High, Endo) combined with Metal Artifact Reduction (MAR) technology
- 4 predefined volumes: 5x5, 6x9, 9x11 and (optional) 9x14 cm - thanks to SMARTVIEW™ 2.0 the volumes are freely positionable and height adjustable in 5 mm steps between 5 and 9 cm before the exposure, leading up to 36 possible FOV sizes in total.
Panoramic
- Fast Scan - 2D panoramic imaging in just 9 seconds
- ORTHOfocus™ feature for providing the optimum panoramic image layer automatically
- Panoramic programs for covering the daily needs of a busy practice

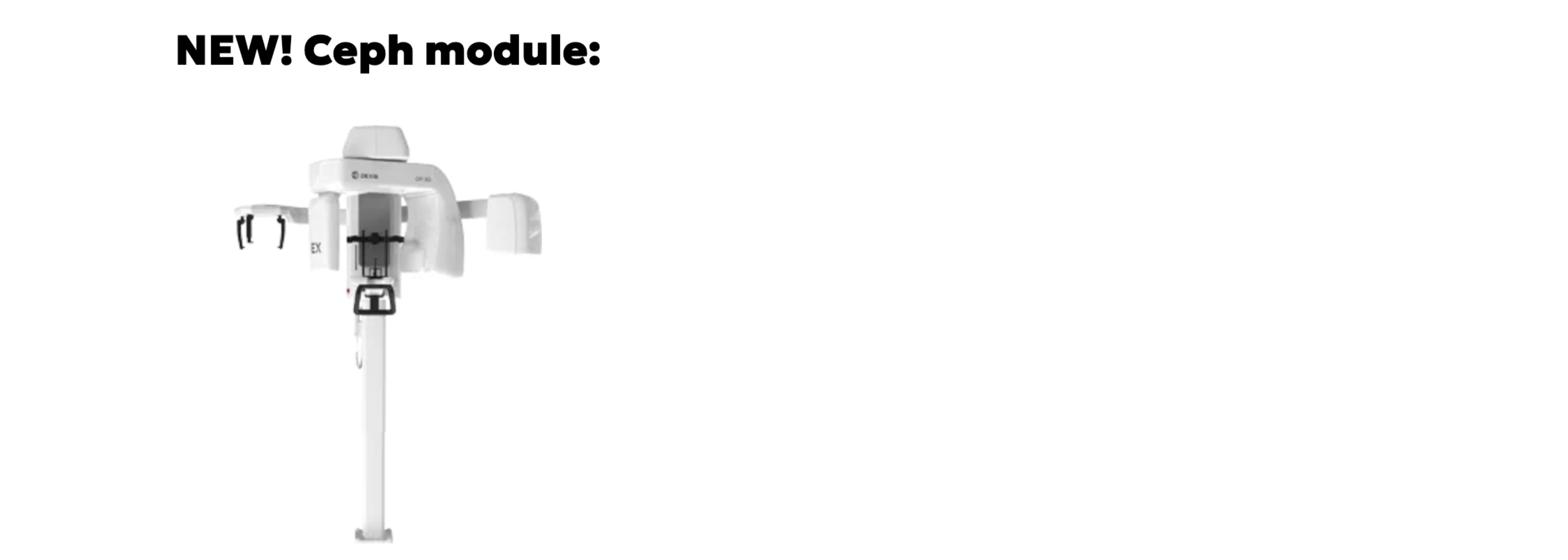

Cephalometric
- Innovative and patented ORTHOceph™ Plus design with fast cephalometric imaging scan times and adjustable field sizes for perfect image quality with minimal dose
Four predefined 3D volume diameters plus the possibility to customise the volume size
The four predefined FOVs of the DEXIS OP 3D are based on true clinical needs and adjustable in height. FOV 5x5 with its endo resolution is optimised for single-tooth and localised diagnostics. FOV 6x9 offers the capability of scanning either the lower or upper jaw, whereas FOV 9x11 combines both. With the largest FOV 9x14, TMJs can be conducted.
Metal Artifact Reduction (MAR): To provide optimum image quality, the Metal Artifact Reduction (MAR) is activated with all FOV sizes and resolutions of the DEXIS OP 3D. MAR is optimized to assist in all cases ranging from endodontics and implants planning to maxillofacial imaging.
DEXIS CBCT:
Long-term Reliability
Backed by a 10-Year Warranty
Investing in a CBCT device is a significant decision for any dental practice, as these advanced imaging systems are crucial for accurate diagnostics and treatment planning. At DEXIS, we understand the importance of this investment and provide a 5-year factory warranty as standard to ensure a solid foundation of security. However, we also offer an additional 5 years of coverage1, extending our comprehensive warranty up to 10 years.
A DEXIS extended warranty is valid for all ORTHOPANTOMOGRAPH™ OP 3D™ LX and ORTHOPANTOMOGRAPH™ OP 3D™ EXmodels and includes all spare parts. However, you can choose to include an extra 5 years of warranty for only the sensor and tubehead. You also have the option for extending the warranty after the CBCT unit installed, and the standard 5-year warranty is already in use.
Downloads:
User Manual (PDF)
